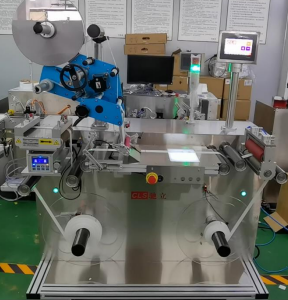

Model: CL-611

Specification:
Power supply: three phase 220V 50-60Hz 3000W(Korea Voltage)
Length of Equipment: 1453 mm
Width of Equipment: 788 mm
Max. production speed: 25M/Min OR 30M/Min
Speed adjustment way: stepless speed regulation
Max. Labeling Lamination: 0-25M/Min OR 30M/Min(Continuously)
Generally labeling accuracy: ±0.5mm
Product size: customers provide samples (width can be customized)
Wet Inlay Max.Width: 110mm
Label Max.width: 200mm
Label Max. Length: 300mm

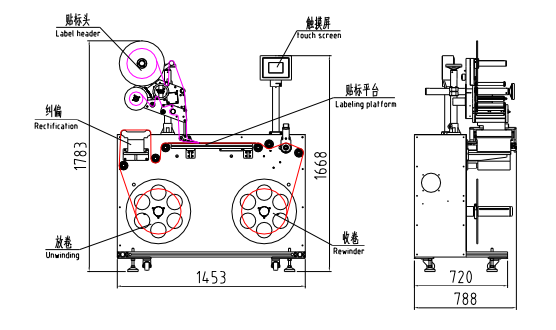

The external diameter of Label in roll: 500mm(Refer to Scheme diagram)
The paper core diameter of label in roll: 76mm
The weight of Equipment: Approx. 286 KGS
