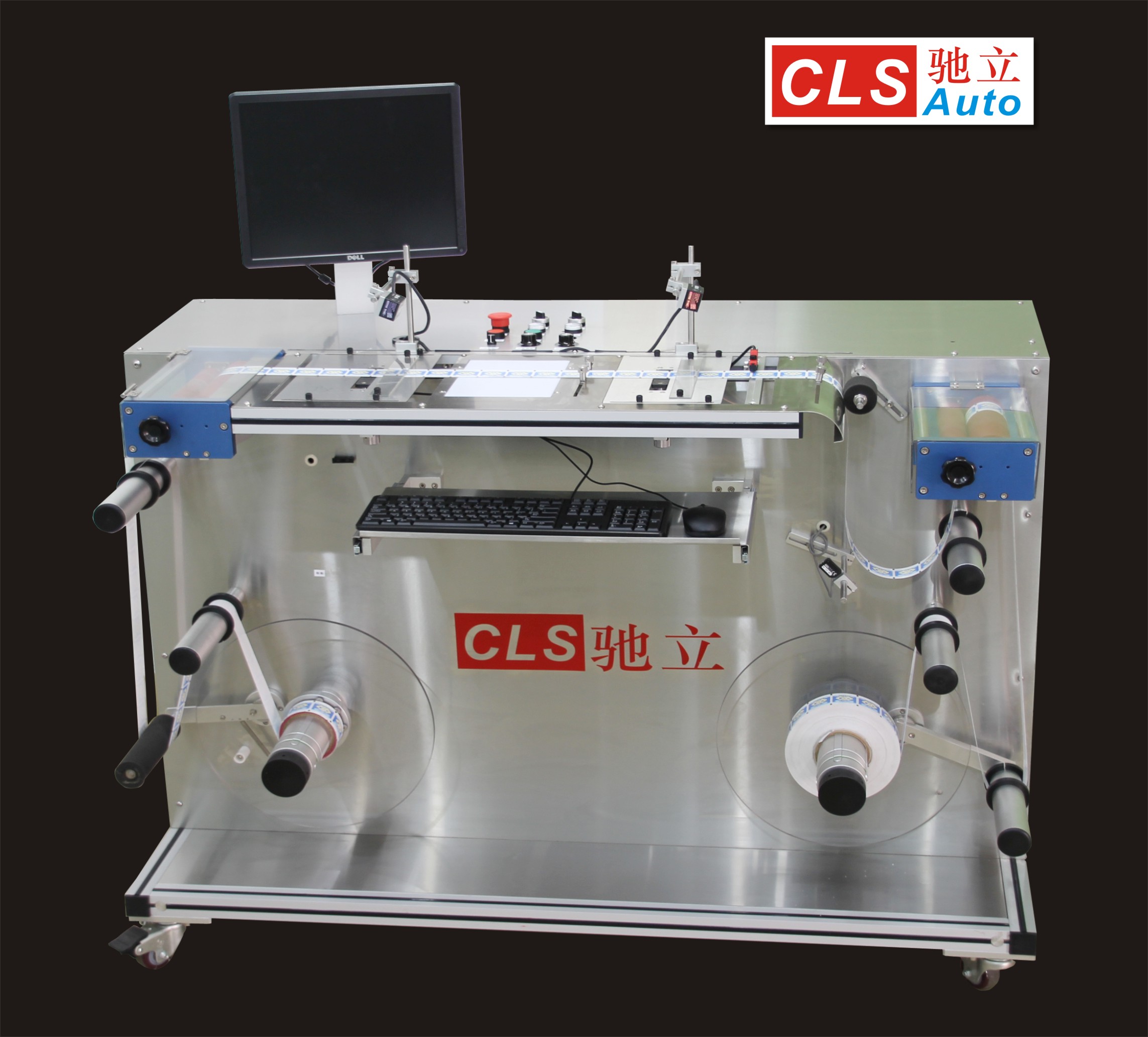

Model: CL-322

Feature:
1. This equipment is suitable for roll RFID label encoding-decoding and quality detecting.
2. With CLS high speed servo system to realize high speed detection.
3. Optional with double station RFID encoding-decoding detection to ensure accuracy.
4. Optional coding scanner to realize the encoding printing with EPC data accordingly.
5. Optional ink jet printing mark on product.
6. User can develop RFID detection software to realize detecting and encoding。

Specification
Detecting speed: Max. 600pc/Min
Encoding Speed: Max.360pc/Min
Laminate accuracy: ±0.5mm
Label Width: 20mm-180mm
Label inner Diameter: φ76mm
Label outer Diameter: Max 400mm
Function: Roll Label high speed detection&encoding

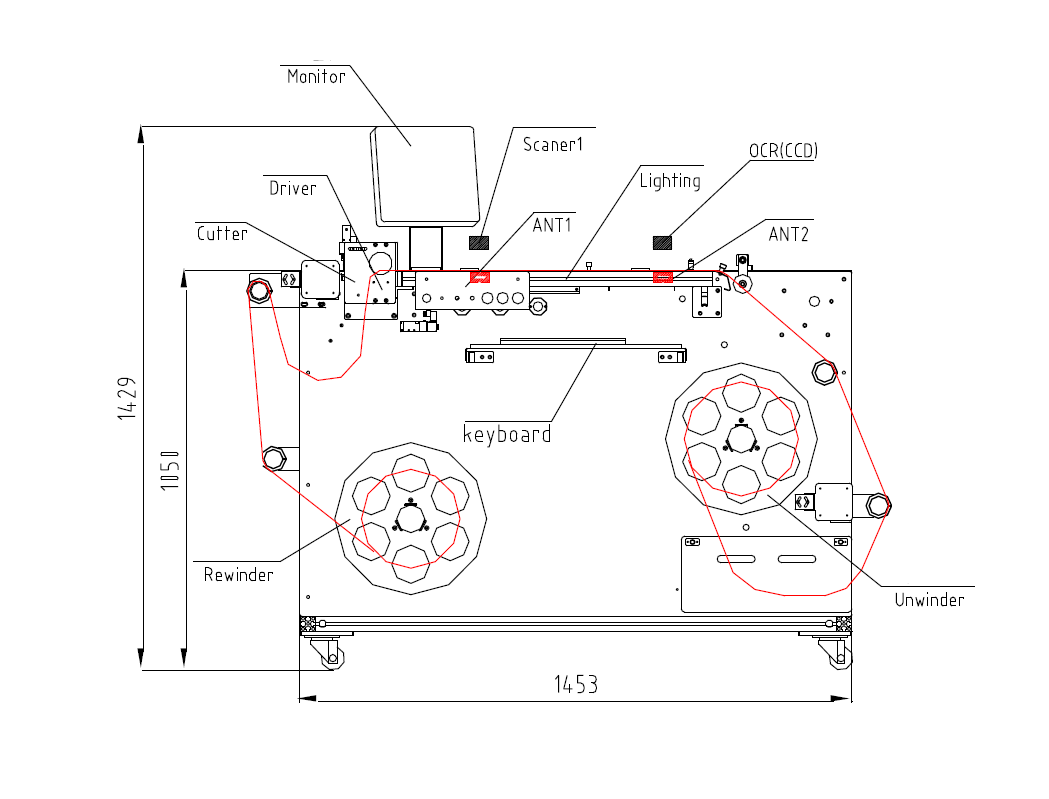

Machine Size: 1500X800X1500（mm）
Power: 220v 50-60hz  1kw
Weight: 200kgs
